Please click here to download the product manual
Features:
Two-In-One Functionality: The OWON SPM series combines the functionality of a power supply and a multimeter into one device, simplifying your workflow and reducing the need for multiple separate devices.
Portable and User-Friendly Design: Its ultra-slim body design makes it conveniently portable and easy to use, ideal for both professional use and DIY enthusiasts.
High-Resolution TFT Display: Features a 2.8-inch TFT LCD display, providing clear, vivid, and easy-to-read measurement data for a better user experience.
USB Communication Interface: Supports the SCPI communication protocol via its USB interface, enhancing its compatibility with different devices and systems.

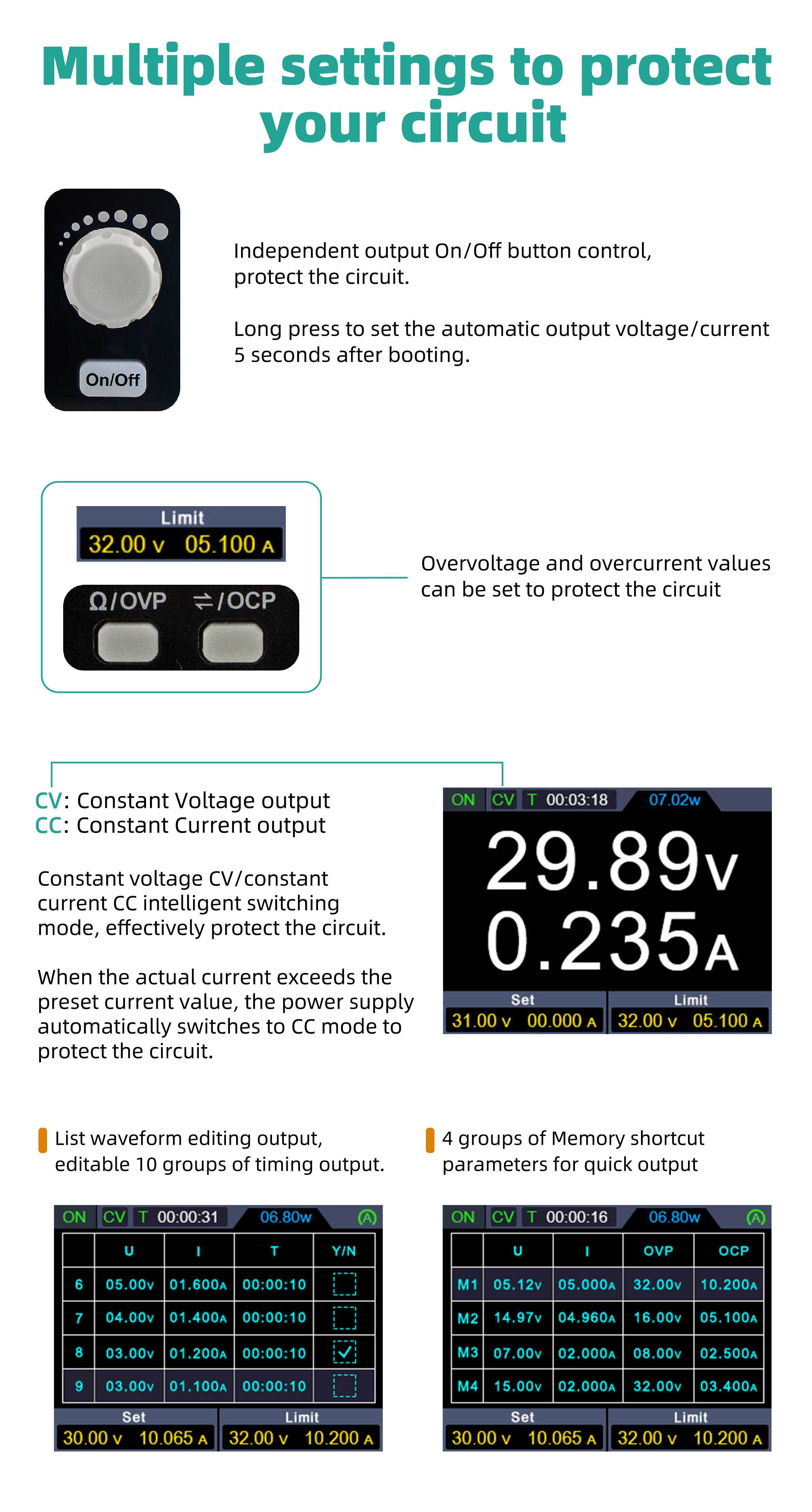

Advanced Safety Features: Equipped with over-voltage and over-current protection functions, ensuring safety during usage. It also provides output voltage and current curve monitoring for better control and analysis of your measurements.
Specifications:
Brand: OWON

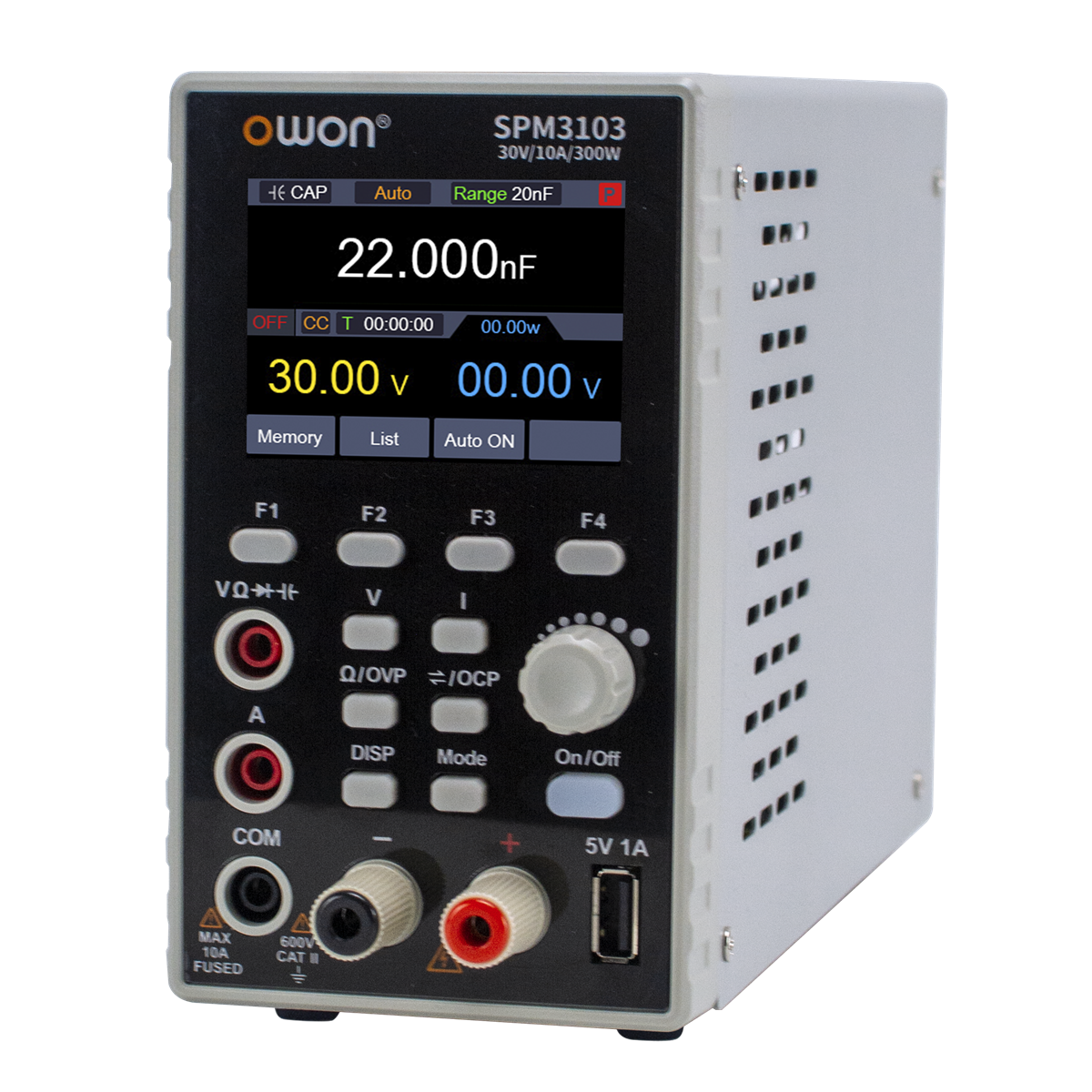

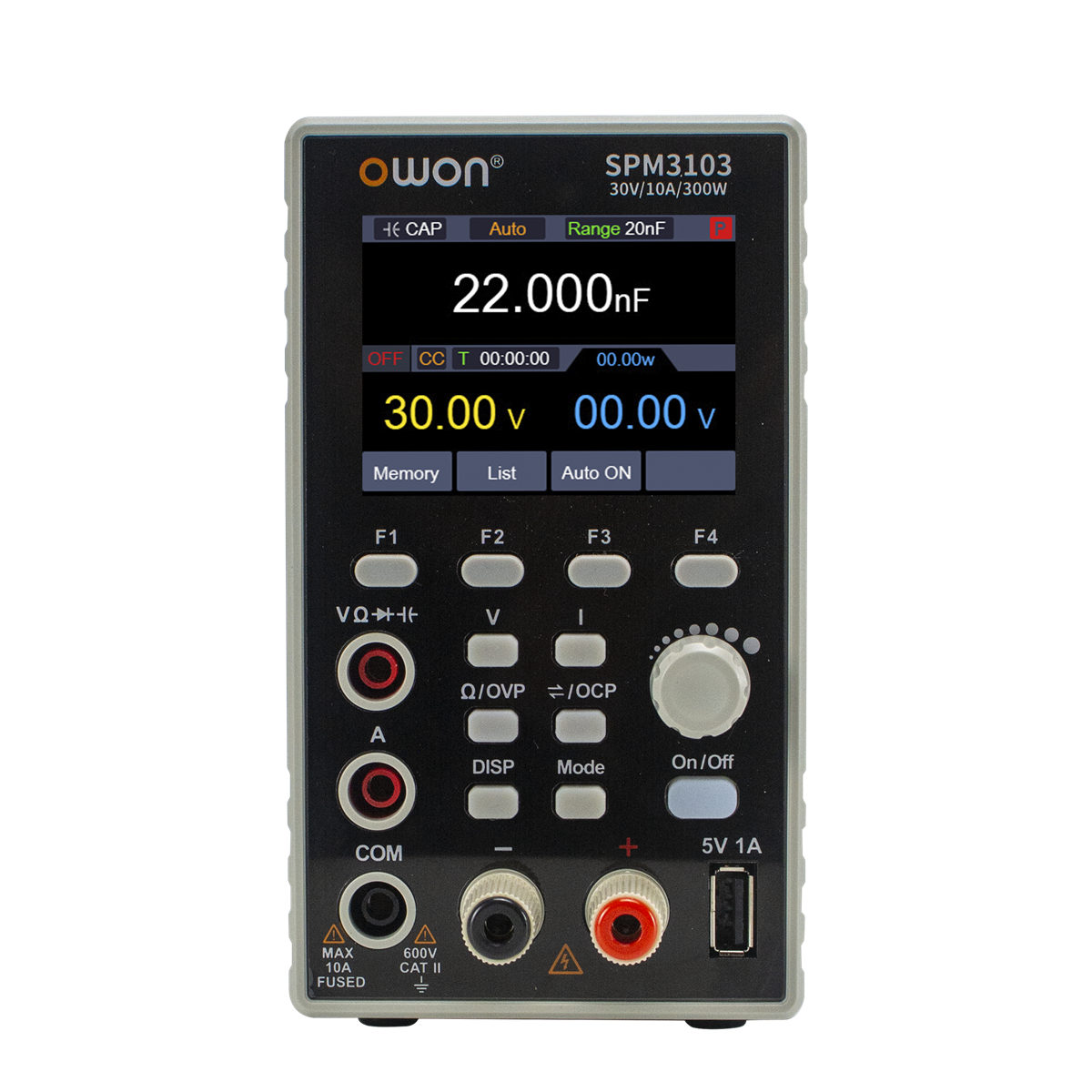

Model: OWON SPM Series Single-Channel DC Power Meter

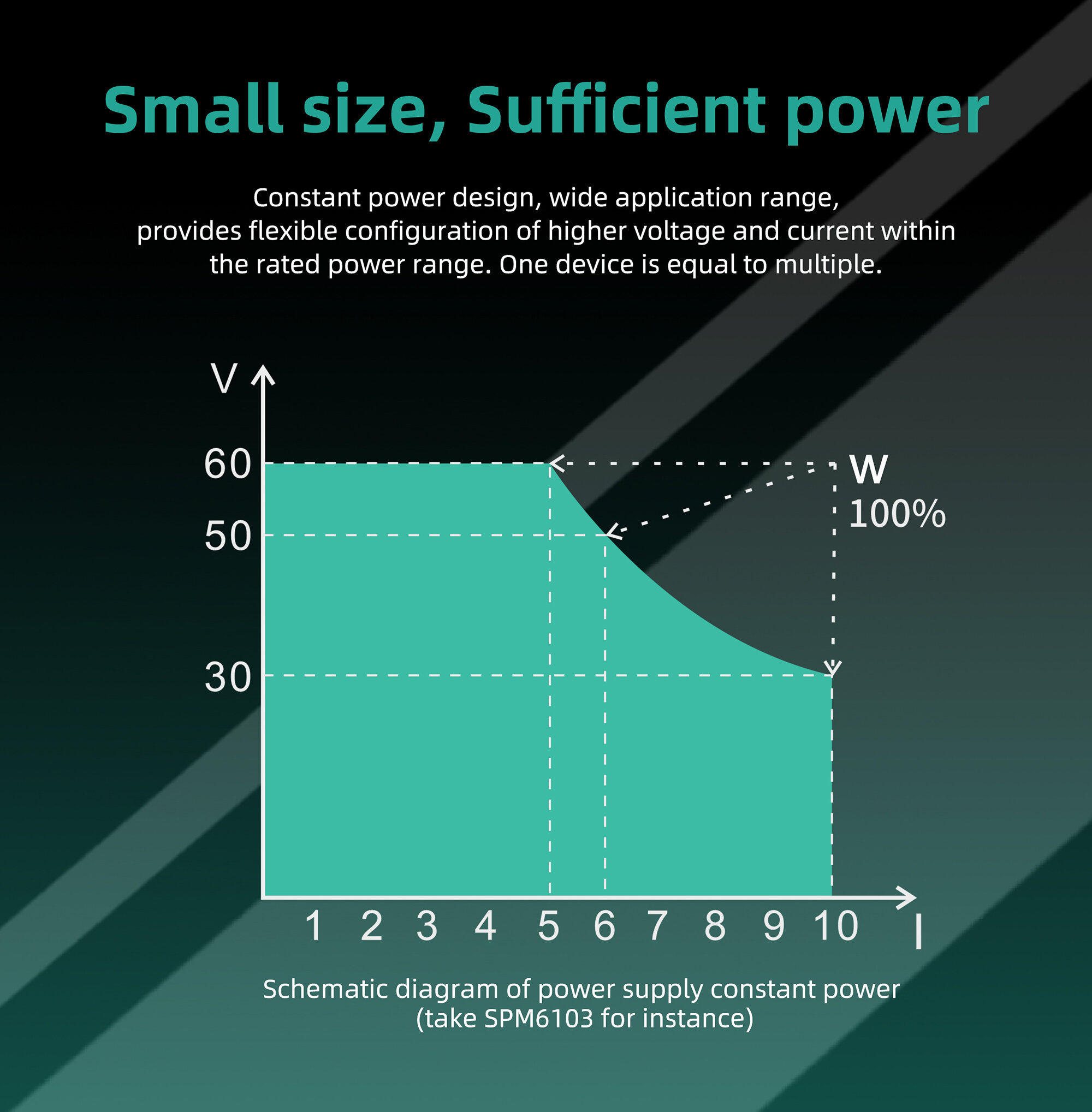

Power Indicators: 150W / 300W constant power design, high resolution 10mV / 1mA
Multimeter Indicators: 4-1/2 digit 20000 count auto-ranging multimeter
Measurements: Voltage, current, resistance, capacitance, diode, continuity
Display: 2.8-inch TFT LCD
Interface: USB, supports SCPI protocol
List waveform editing output with 10 groups of timed output function
Optional Model: SPM3103/SPM6103/SPM3051/SPM6053

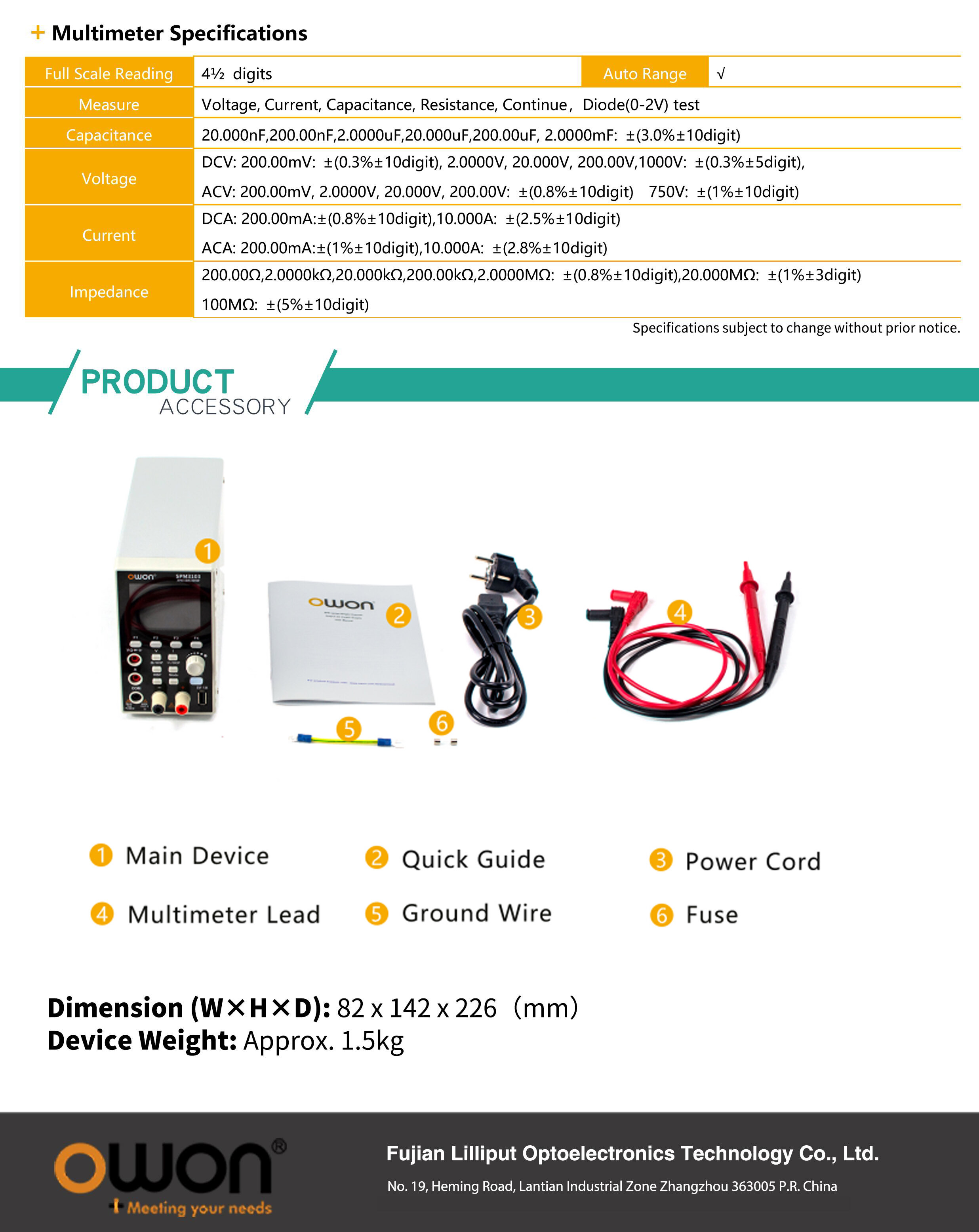

Package Included:
1 x OWON SPM Single-Channel DC Power Meter(Model as your choice)
1 x Test Lead
1 x Power Cable
1 x Ground Wire
1 x Fuse
1 x Manual

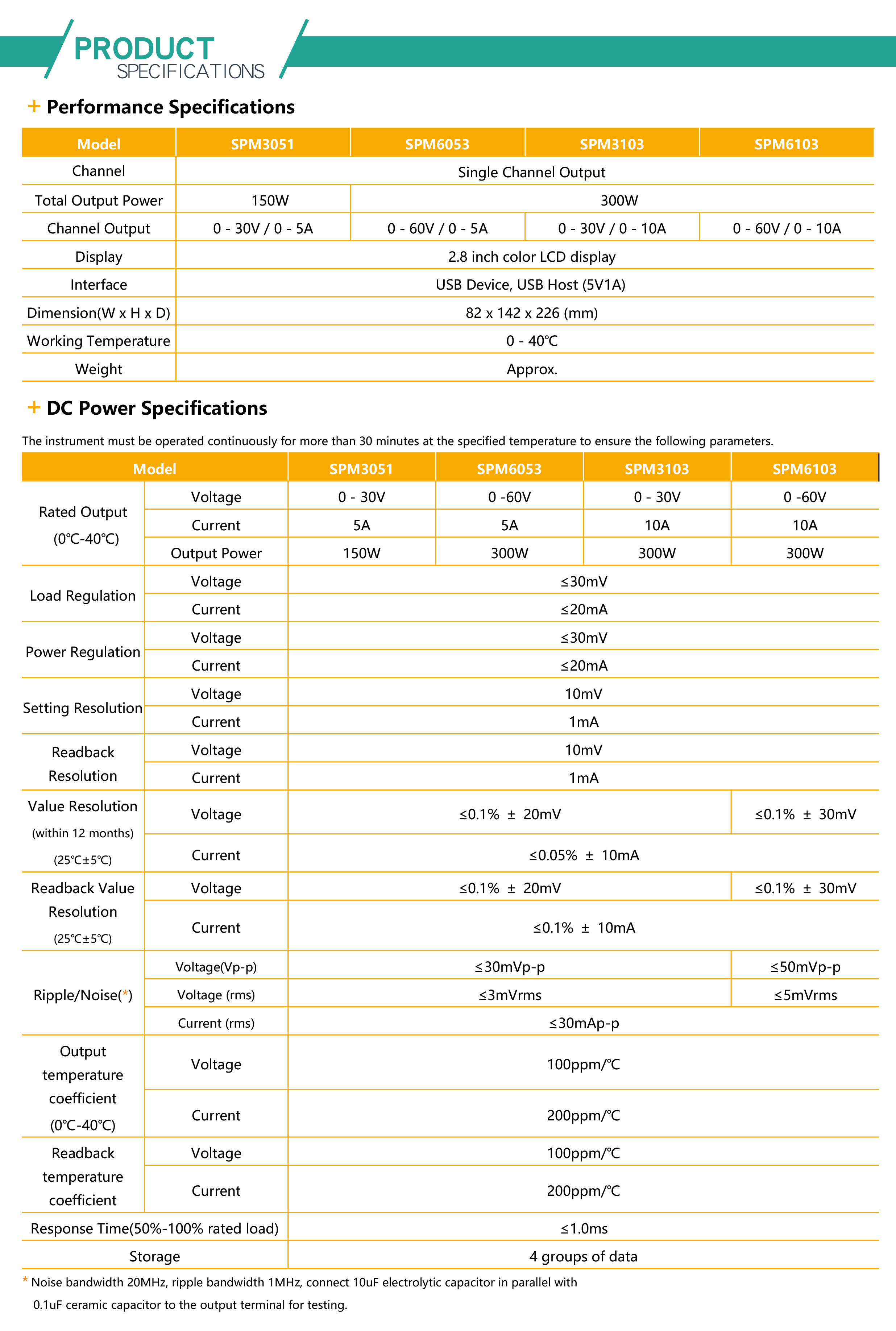

Model | SPM3051 | SPM6053 | SPM3103 | SPM6103 |
mso-font-kerning:1.0000pt;"> Channelfont-size:9.0000pt;mso-font-kerning:1.0000pt;"> | color:rgb(0,0,0);font-size:9.0000pt;mso-font-kerning:1.0000pt;">Single channel outputfont-size:9.0000pt;mso-font-kerning:1.0000pt;"> | |||
mso-font-kerning:1.0000pt;"> Total power output powerfont-size:9.0000pt;mso-font-kerning:1.0000pt;"> | color:rgb(0,0,0);font-size:9.0000pt;mso-font-kerning:1.0000pt;">150W constant power outputfont-size:9.0000pt;mso-font-kerning:1.0000pt;"> | color:rgb(0,0,0);font-size:9.0000pt;mso-font-kerning:1.0000pt;">300W constant power output | ||
Channel Outputfont-size:9.0000pt;mso-font-kerning:1.0000pt;"> | color:rgb(0,0,0);font-size:9.0000pt;mso-font-kerning:1.0000pt;">0 - 30V / 0 - 5Afont-size:9.0000pt;mso-font-kerning:1.0000pt;"> | color:rgb(0,0,0);font-size:9.0000pt;mso-font-kerning:1.0000pt;">0 - 60V / 0 - 5A | color:rgb(0,0,0);font-size:9.0000pt;mso-font-kerning:1.0000pt;">0 - 30V / 0 - 10A | color:rgb(0,0,0);font-size:9.0000pt;mso-font-kerning:1.0000pt;">0 - 60V / 0 - 10A |
Multimeter | color:rgb(0,0,0);font-size:9.0000pt;mso-font-kerning:1.0000pt;">4.5-digit multimeter to measure voltage, current, resistance, capacitance, diode, continuity | |||
Interface | color:rgb(0,0,0);font-size:9.0000pt;mso-font-kerning:1.0000pt;">USB Dfont-size:9.0000pt;mso-font-kerning:1.0000pt;">ecolor:rgb(0,0,0);font-size:9.0000pt;mso-font-kerning:1.0000pt;">vice font-size:9.0000pt;mso-font-kerning:1.0000pt;">,color:rgb(0,0,0);font-size:9.0000pt;mso-font-kerning:1.0000pt;">USB Hcolor:rgb(0,0,0);font-size:9.0000pt;mso-font-kerning:1.0000pt;">ost (only 5V1A output ) | |||
Working temperature | color:rgb(0,0,0);font-size:9.0000pt;mso-font-kerning:1.0000pt;">0-40℃font-size:9.0000pt;mso-font-kerning:1.0000pt;"> | |||
Display type | color:rgb(0,0,0);font-size:9.0000pt;mso-font-kerning:1.0000pt;">2.8 inches (240x320) color LCD displayfont-size:9.0000pt;mso-font-kerning:1.0000pt;"> | |||
Size | mso-font-kerning:1.0000pt;">82mso-font-kerning:1.0000pt;">mm(Wmso-font-kerning:1.0000pt;">)*142mso-font-kerning:1.0000pt;">mm (Hmso-font-kerning:1.0000pt;"> )*2mso-font-kerning:1.0000pt;">26mso-font-kerning:1.0000pt;">mm (H )font-size:9.0000pt;mso-font-kerning:1.0000pt;"> | |||
Weight | mso-font-kerning:1.0000pt;"> about 1.5 kg |
Max. Num. Of | font-size:9.0000pt;">4.5 | Dfont-size:9.0000pt;">igits Auto Rfont-size:9.0000pt;">ange | u221a |
Measurement | font-size:9.0000pt;">Voltage, current, capacitance, resistance, continuity, diode (0-2V) test | ||
Voltage | font-size:9.0000pt;">DCV: 200font-size:9.0000pt;">.00font-size:9.0000pt;">mV: ± (0.3font-size:9.0000pt;">%± 10digit), 2font-size:9.0000pt;">.0000font-size:9.0000pt;">V, 20font-size:9.0000pt;">.000font-size:9.0000pt;">V, 200font-size:9.0000pt;">.00V,font-size:9.0000pt;">1000Vfont-size:9.0000pt;">: font-size:9.0000pt;">± (0.3%± 5digit), font-size:9.0000pt;">ACV: 200.font-size:9.0000pt;">00font-size:9.0000pt;">mV, 2font-size:9.0000pt;">.0000font-size:9.0000pt;">V, 20font-size:9.0000pt;">.000font-size:9.0000pt;">V, 200font-size:9.0000pt;">.00font-size:9.0000pt;">V: ± (0.8%± 10digit) 750V: ± (1%± 10digit) | ||
Current | font-size:9.0000pt;">DCA: font-size:9.0000pt;">200.00mfont-size:9.0000pt;">A:font-size:9.0000pt;">± (font-size:9.0000pt;">0.8font-size:9.0000pt;">%± 10digit)font-size:9.0000pt;">,10font-size:9.0000pt;">.000font-size:9.0000pt;">A: ± (2font-size:9.0000pt;">.5font-size:9.0000pt;">%± 10digit) font-size:9.0000pt;">ACA: font-size:9.0000pt;">200.00mfont-size:9.0000pt;">A:font-size:9.0000pt;">± (1font-size:9.0000pt;">%± 10digit)font-size:9.0000pt;">,10font-size:9.0000pt;">.000font-size:9.0000pt;">A: ± (2font-size:9.0000pt;">.8font-size:9.0000pt;">%± 10digit) | ||
Resistance | font-size:9.0000pt;">200font-size:9.0000pt;">.00Ω,2.font-size:9.0000pt;">00font-size:9.0000pt;">00font-size:9.0000pt;">kΩ,font-size:9.0000pt;">20.0font-size:9.0000pt;">00kΩ,font-size:9.0000pt;">200font-size:9.0000pt;">.00kΩ,2font-size:9.0000pt;">.0000Mfont-size:9.0000pt;">Ω: ± (0.8%± 10digit),20font-size:9.0000pt;">.000font-size:9.0000pt;">MΩ: ± (1%± 3digit) font-size:9.0000pt;">100MΩ: ± (5%± 10digit) | ||
Capacitance | 2font-size:9.0000pt;">0.000font-size:9.0000pt;">nFfont-size:9.0000pt;">,200.00nF,2.0000ufont-size:9.0000pt;">F,20.000ufont-size:9.0000pt;">F,200.00ufont-size:9.0000pt;">F,font-size:9.0000pt;"> 2.0font-size:9.0000pt;">000font-size:9.0000pt;">mF: ± (3.0font-size:9.0000pt;">%± 10digit) |
